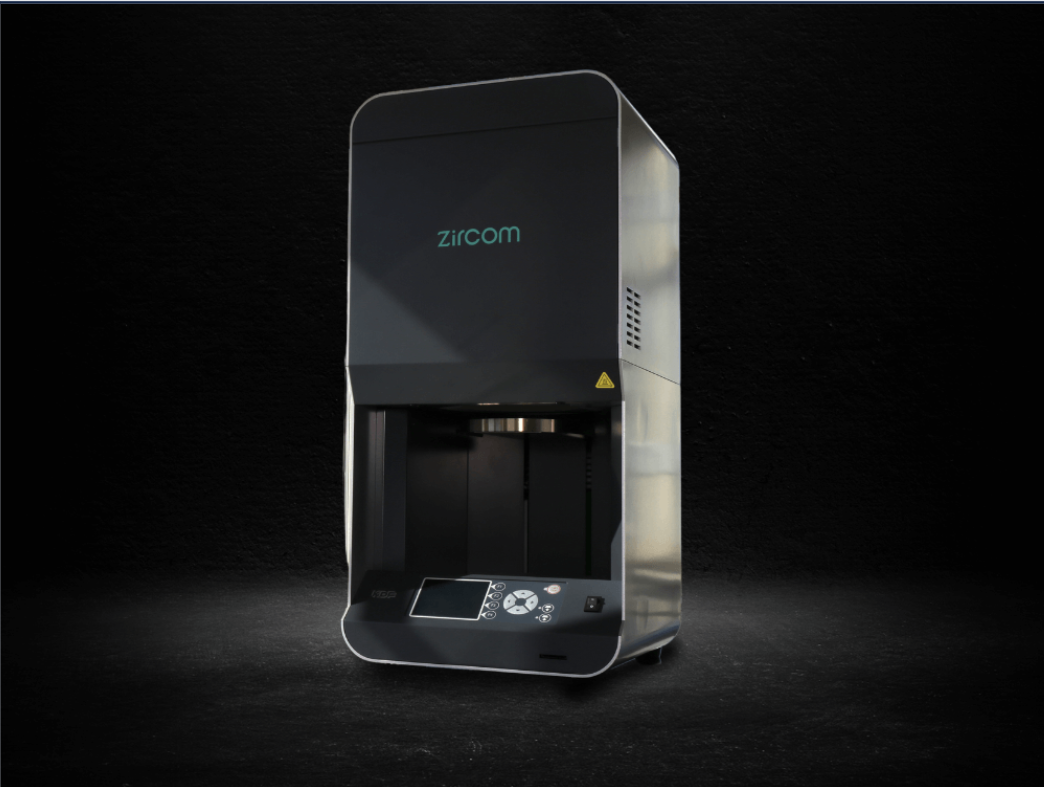

Zircom Standard Sintering Furnace

Delicacy and beauty for your zirconia — in a compact footprint.

The Zircom Standard sintering furnace delivers clean, reliable, consistent results for every type of zirconia. A molybdenum disilicide (MoSi₂) heater pushes a true 1600°C max temperature, with 100 programs of 20 steps each — enough headroom for every shade and brand on the bench.

For normal sintering schedules (7–10 hours), 3 ceramic trays sinter 50–60 single crowns per cycle. Compact at 12 × 25 × 18 inches and dead-simple to operate. Firmware updatable via SD card.

Specifications

• Max Temperature: 1600°C (2912°F)
• Heating Element: MoSi₂
• Capacity: 50–60 crowns
• Dimensions: 12 × 25 × 18 in
• Weight: 88 lbs (40 kg)
• Power: 220V · 2.5 kVA
• Display: 3.5" LCD color
• Programs: 100 × 20 steps
• Firmware: SD card updatable
• Ceramic Trays: 3

📞 Inquire Us for Pricing
