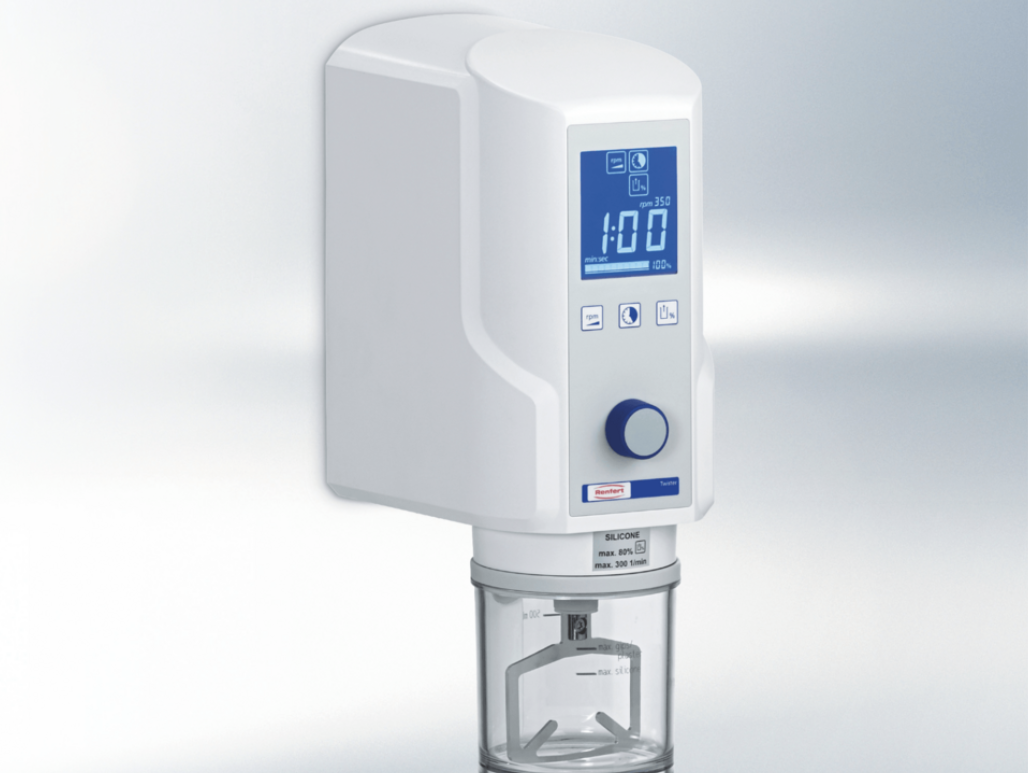

Renfert Twister Vacuum Mixing Unit

Perfect mixing. Every time.

The Renfert Twister is a high-speed vacuum mixing unit with a diaphragm (membrane) pump for vacuum and base mixing functions. Reliable processing of large quantities thanks to high speed, with vacuum regulation from 70% to 100% to dial in bubble reduction for each material. Compact 6 × 11 × 9 inch wall unit — silent, easy to use, with a large bright display for fast parameter entry. Used flexibly for alginate impression materials and even duplicating and model material on the bench. Ships with 500 ml bowl and mixing paddle; bench stand sold separately.

Specifications

• Vacuum Build-up: Membrane (diaphragm) pump
• Max Vacuum: -850 mbar (-12.9 psi)
• Vacuum Reduction: 70–100%
• Rotational Speed: 100–450 rpm
• Pump Capacity: 16 l/min (0.56 cfm)
• Bowl Pressure (abs.): 80 mbar
• Dimensions (wall): 6.0 × 11.2 × 5.3 in
• Dimensions (stand): 9.0 × 25.2 × 11.6 in
• Weight: 11.5 lbs (5.2 kg)
• Voltage: 100–240 V
• Power: 180 VA
• Scope of Delivery: +500 ml bowl & paddle

📞 Inquire Us for Pricing
