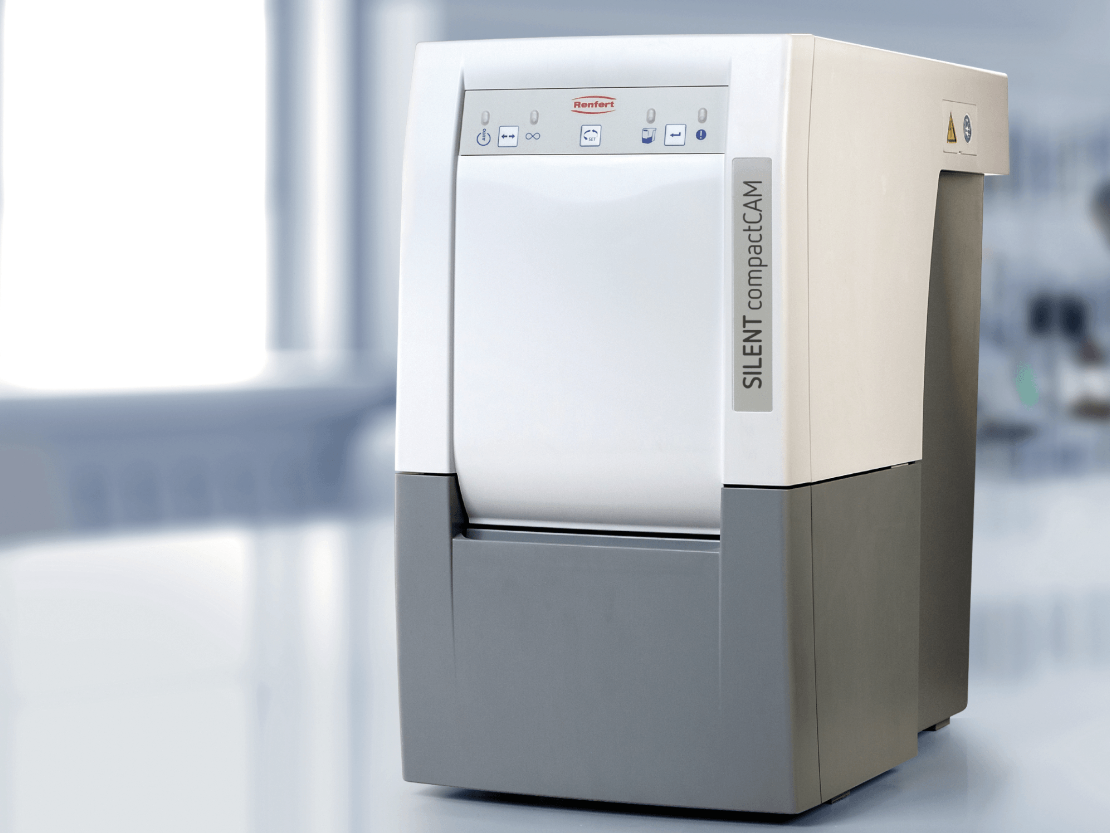

Renfert SILENT compactCAM Mill Extraction Unit

Your mill, talking to its extraction.

SILENT compactCAM is the SILENT compact chassis purpose-built for dental CAM mills. An RJ-45 PLC interface with two inputs and two outputs gives the extraction unit a real conversation with your mill — it starts when the spindle starts, idles when the job pauses, and stops when the run finishes. No foot pedal, no manual switch.

Same 2,500 l/min volume flow, same 55 dB(A) noise floor, same bag-free Class M filter and 1,000-hour collector motor as the workbench SILENT compact — paired with a dozen+ interface cable options that fit Roland, vhf, ARUM, Zirkonzahn, DGSHAPE, and most other compact CAM platforms.

Specifications

• Use: CAM mill extraction
• CAM Interface: RJ-45 PLC · 2 in / 2 out
• Volume Flow (max): 2,500 l/min
• Max Depression: 219 hPa (3.2 psi)
• Noise Level: 55 dB(A)
• Filter: Class M · bag-free
• Motor: Collector · 1,000 hr
• Dust Collector: 2.6 L (0.69 gal)
• Dimensions: 9.5 × 17.3 × 19.7 in
• Weight: 29.1 lbs (13.2 kg)
• Power: 460–480 W
• Scope of Delivery: +2 m hose, 2 mufflers

📞 Inquire Us for Pricing (specify your mill so we include the correct interface cable)
